ÖHLINS RACING'S SMARTEC3 ELECTRONIC SUSPENSION DEBUTS ON 2024 HONDA CBR1000RR-R FIREBLADE SP SUPERBIKE

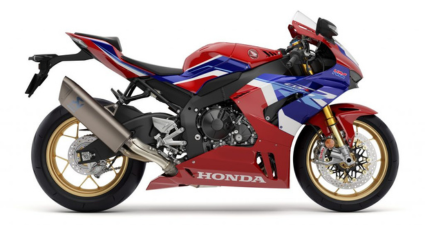

The new Fireblade SP, featuring an array of racing-focused enhancements, is the first production motorcycle to be equipped with the SmartEC3 suspension.

Öhlins SmartEC3 suspension combines the brand’s latest, world-class suspension components with highly advanced electronic controls that continuously optimize damping characteristics based on bike and rider behavior and other inputs. The system also enables riders to choose, on the fly, among four semi-active suspension algorithms – Sport, Track, Rain and Manual – to address changing conditions and/or preferences. The system includes Öhlins’ state-of-the-art Objective Base Tuning Interface (OBTi), which allows riders to easily adjust for different vehicle characteristics such as brake support, weight transfer or support during initial acceleration, and fine tuning of cornering grip, to name a few. Taking inspiration from MotoGP rear ride height devices, the updated acceleration parameter provides tuning of weight transfer in initial acceleration to enable enhanced performance through a lowered center of gravity. The updated algorithms are also capable of adjusting to rider weight input to provide suggested pre-load and optimizing damping levels.

The 2024 Fireblade SP suspension features Öhlins 43mm S-EC3 (SV) NPX USD forks and TTX36 EC rear shocks, each fitted with the brand’s exclusive “spool valve” design, which significantly enhances rider comfort. Unlike a traditional needle valve, the spool valve features a pressure compensation chamber that balances the force applied to the damper’s actuator, enabling quicker adjustment. The valve also provides increased sensitivity and responsiveness at the low and high ends of the adjustment range.

“SmartEC3 suspension technology represents another engineering breakthrough that enables riders to be at one with their bikes, leading to superior performance, control and excitement,” said Robert Brinkmark, director of sales and marketing, Öhlins Racing. “We were very proud to unveil this impressive achievement in conjunction with the introduction of Honda’s exciting new Fireblade SP.”
