Öhlins Adventure ORQ Shock absorber kit for Ford Ranger 2018

Part no: FOV XW00S1

ADD TO CART

For cars with a standard or light bull bar (up to 50kg)

Warning! This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Embark on your next great journey with Öhlins’ new product line for the Adventure segment.



Whether you’re driving through town or exploring rough terrain, you should feel confident that your suspension will offer the extra support and versatility to take on whatever conditions come your way. Building on Öhlins’ 40+ years of experience in developing premium, cutting-edge suspension technology for Racing, Rally, and Offroad, we’re proud to introduce our new suspension for the Ford Ranger. Since day one, our focus has been clear — advanced suspension technology for superior handling and comfort, both on- and off-road.



Our suspension will give your Ford Ranger better grip, improve handling through sharp turns, and maintain stability when you’re driving on an incline. It features two-way adjustable damping for compression and rebound, so you can adapt the suspension to your driving style and the road conditions ahead. With greater traction and control, plus the capacity to lift your vehicle up to +2 inches, you will be able to use larger tires, increase ground clearance and tackle any obstacle, whether you’re driving through mud, sand, rocks, or water.



In addition to its outstanding damping properties on rugged terrain, the Öhlins suspension for Ford Ranger will also improve your ride quality on common roads and highways. You’ll never have to compromise between off-road handling and on-road comfort again, which makes these products a winning combination for your vehicle!



Features

GENERAL FEATURES:
2.25” shock body, fully aluminum design for improved cooling
2-way adjustable damping (compression and rebound)
Öhlins’ industry-leading, pressure-balanced damping prevents cavitation
From 0" up to 2” lift
Improved top-out strength for solid axles and off-road use
Spherical ball joints for low-friction suspension movement and improved body control
Rebuildable for custom tuning
Possibility to upgrade to our 2-way adjustable compression valve for adjusting high speed and low-speed compression
2-year warranty

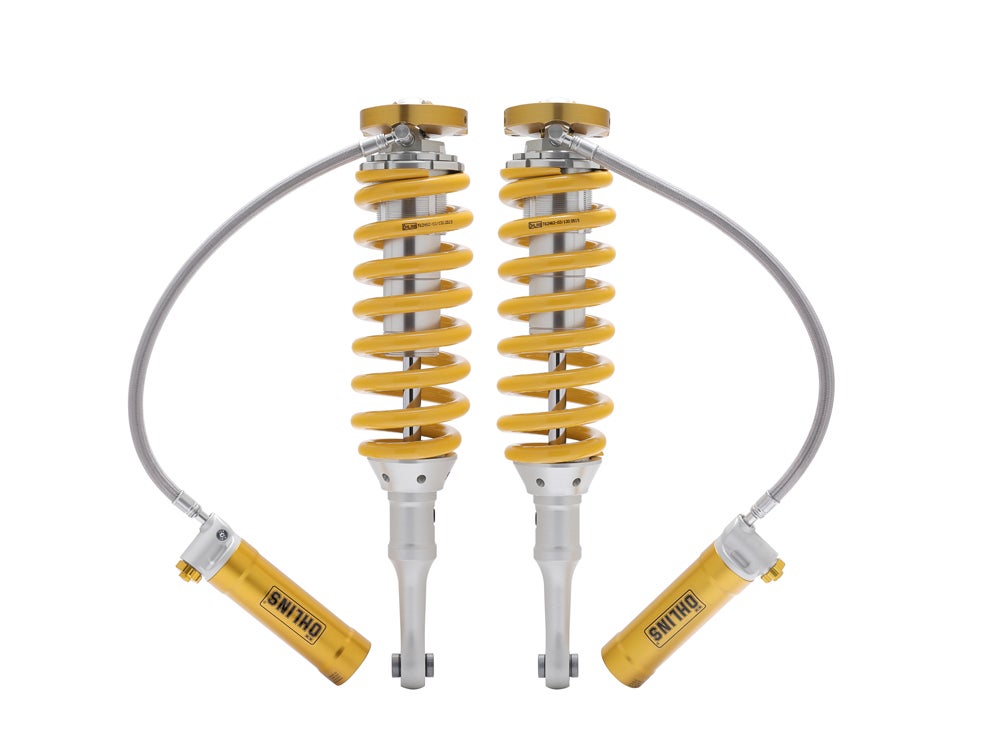

FRONT FEATURES:
Conventional monotube shock absorber with swivel, high-pressure braided hose in stainless steel for remote reservoir
Top mounts included
Springs 130N/mm

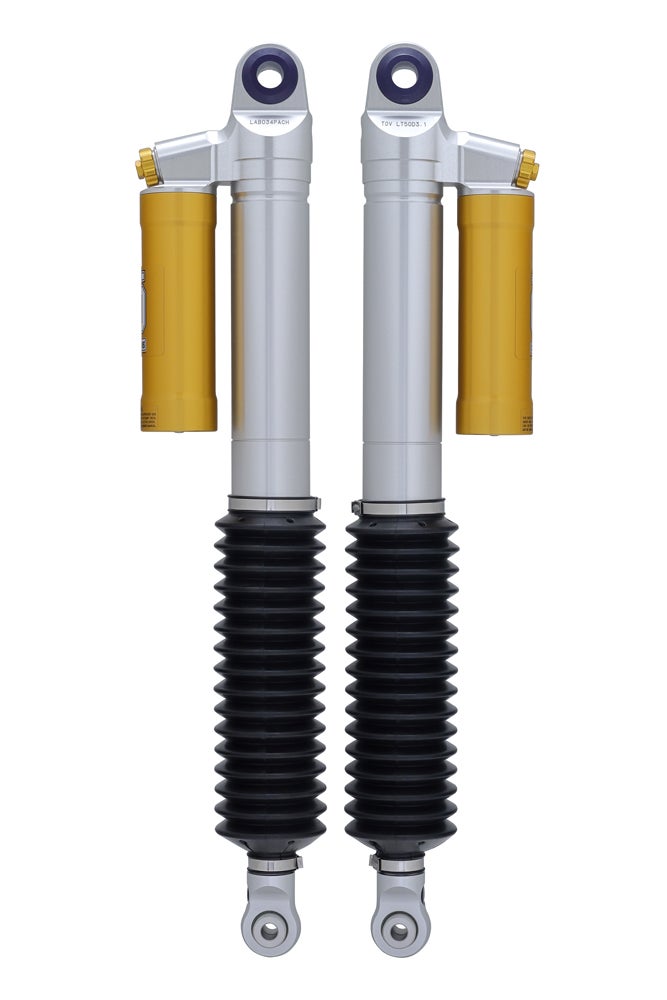

REAR FEATURES:
Conventional monotube shock absorber with piggyback reservoir
Designed for up to 2” lift. 1" lift block included.
Equipped with bellows for shaft protection
Designed for standard leaf springs (+1” lift). Aftermarket leaf spring needed for +2” lift
Damp tech:
ORQ
Mounting Instructions Öhlins Auto Shock Absorber Kit for FORD RANGER T6 (2011-2019) FOV 1W00, FOV 2W00, FOV 6W00 Front and Rear
Mounting Instruction
DOWNLOAD

  • Shock Absorber Ford Ranger 1" lift (T6) / Everest (U375/UA), FR

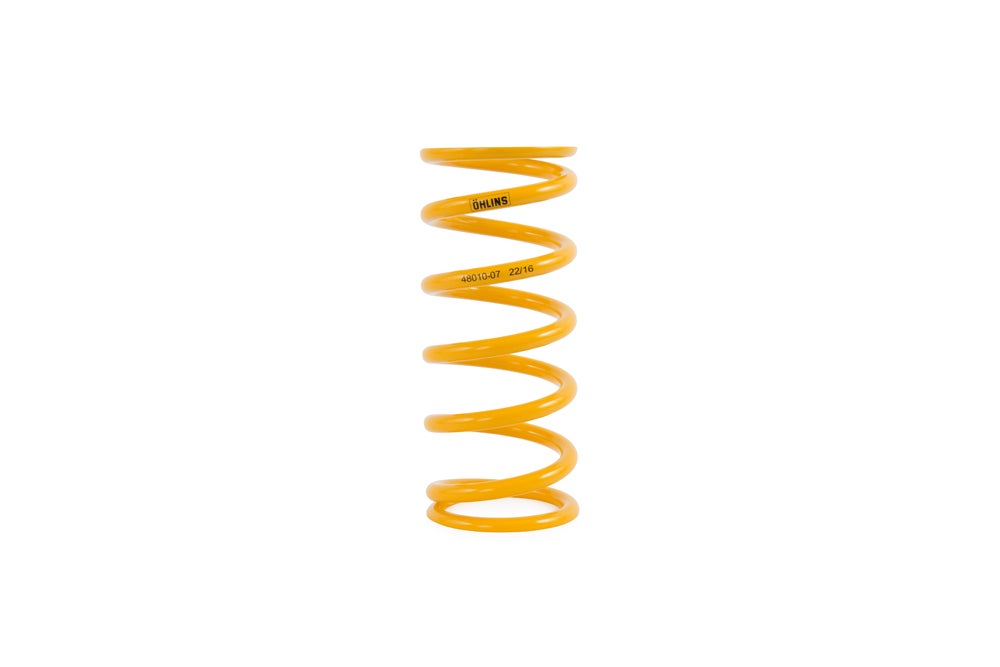

  • Spring 65/335/130 N/mm

  • Shock Absorber Ford Ranger 1" lift (T6), Rear

  • Shock Absorber Ford Ranger 1" lift (T6) / Everest (U375/UA), FL
