Shock absorber STX46 Street Performance Motorcycle

Part no: KT 790

Type code: S46HR1C1B

$1 296.90

Out of stock

ADD TO CART

Does not fit Duke 890 R version

Warning! This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
With our proven monotube design, the STX 46 shock absorbers set the standard for performance, quality, and durability. A mainstay of our Street Performance line, the Öhlins STX 46 Street is a major performance upgrade for your bike.

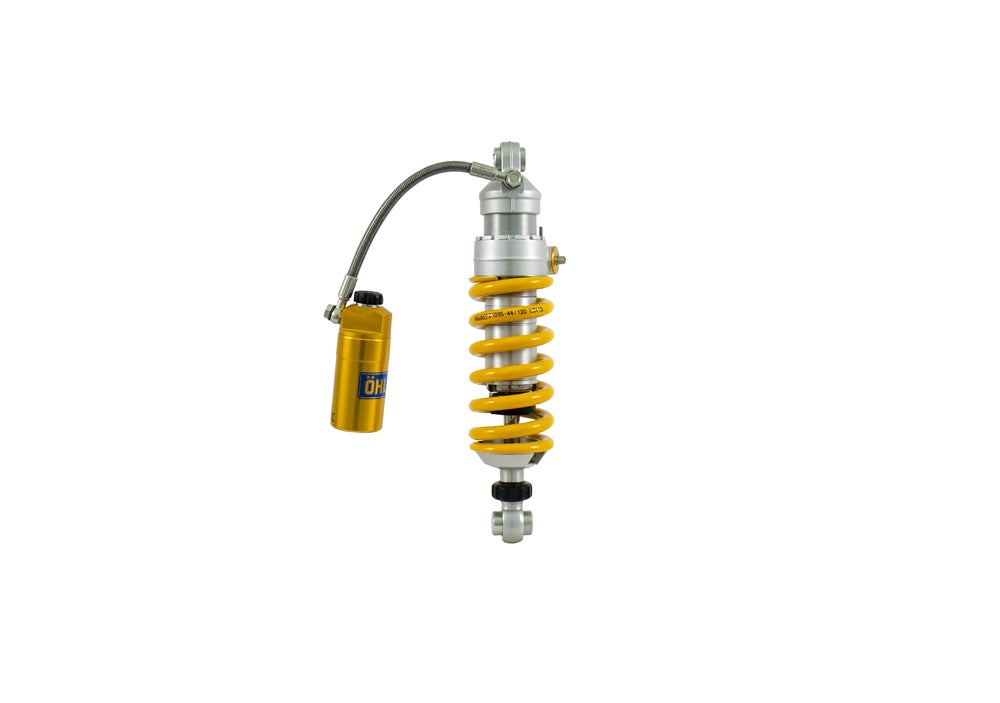

The STX46 Street for the KTM 790 Duke and 890 Duke is equipped with a large 46 mm main piston, an external gas reservoir, and a hydraulic preload adjuster.



With adjustable compression and rebound damping, you can fine-tune the shock’s behavior to fit your own riding style. An added benefit of the shock's external reservoir is that it holds a larger volume of oil, keeping the shock cool in extreme conditions and providing a wider range of adjustment options. The hydraulic preload adjuster will also enable you to adjust the preload for changes in weight—no tools required.







Features

Adjustable rebound and compression damping
Monotube shock and external hose-mounted reservoir
Integrated hydraulic spring preload adjuster
High-pressure nitrogen gas-charged
STX single-tube design
46 mm piston diameter
Adjustable preload with tool
Top-level comfort, rideability, and performance
Hard-anodized precision CNC-machined components
Low-friction shaft and seal head design
Fully serviceable and repairable
Damp tech:
STX 46
Length:
387
Oil:
Öhlins 1309
Spring:
01092-54 (Y)
Spring Rate:
140
Stroke:
55
TÜV:
Yes
MI_KT790.pdf
Mounting Instruction
DOWNLOAD
With our proven monotube design, the STX 46 shock absorbers set the standard for performance, quality, and durability. A mainstay of our Street Performance line, the Öhlins STX 46 Street is a major performance upgrade for your bike.



The STX46 Street for the KTM 790 Duke and 890 Duke is equipped with a large 46 mm main piston, an external gas reservoir, and a hydraulic preload adjuster.



With adjustable compression and rebound damping, you can fine-tune the shock’s behavior to fit your own riding style. An added benefit of the shock's external reservoir is that it holds a larger volume of oil, keeping the shock cool in extreme conditions and providing a wider range of adjustment options. The hydraulic preload adjuster will also enable you to adjust the preload for changes in weight—no tools required.







Features

Adjustable rebound and compression damping
Monotube shock and external hose-mounted reservoir
Integrated hydraulic spring preload adjuster
High-pressure nitrogen gas-charged
STX single-tube design
46 mm piston diameter
Adjustable preload with tool
Top-level comfort, rideability, and performance
Hard-anodized precision CNC-machined components
Low-friction shaft and seal head design
Fully serviceable and repairable
Damp tech:
STX 46
Length:
387
Oil:
Öhlins 1309
Spring:
01092-54 (Y)
Spring Rate:
140
Stroke:
55
TÜV:
Yes
MI_KT790.pdf
Mounting Instruction
DOWNLOAD

PRODUCT TYPE DETAILS

S46HR1C1B

TUBE TYPE
S

Single or twin tube design.

PISTON DIAMETER
46

Piston diameter

TYPE
H

Monotube high pressure gas type of shock absorber with hose mounted external reservoir

FUNCTION
R1

Adjustable rebound damping. Adjuster wheel or slot above the end eye.

C1

Adjustable compression damping. Adjuster wheel or slot on the reservoir.
