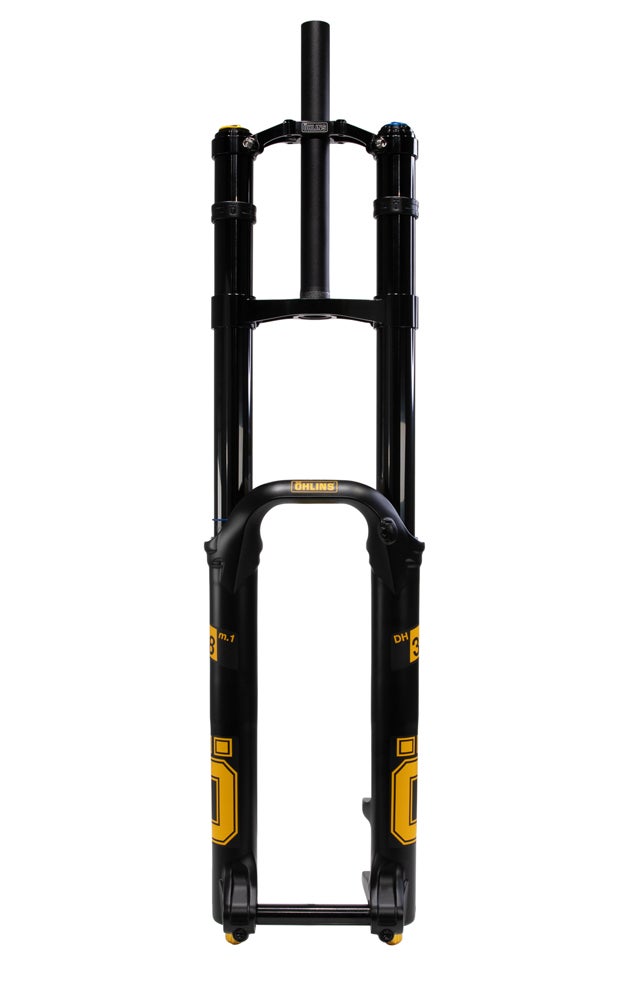

DH38 m.1 Front Fork Mountain Bike

Part no: FDMTB 3820 2120

The DH38 m.1 combines race-winning performance with unrivaled adjustability and sensitivity, delivering total rider comfort and control. Built on our proven DH38 platform and enhanced with key upgrades, it’s the most capable and refined downhill fork we’ve ever created.



Whether you ride an e-MTB gravity rig or a pedal-powered machine, the DH38 m.1 offers superb small-bump tracking and the ability to soak up even the biggest hits. The result is smoother, faster, and more confident runs on any course. Redesigned seals work with our advanced lubricants and greases to enhance the fork’s incredibly plush feel, boosting traction and control while reducing fatigue over demanding terrain.



The award-winning DH38 m.1 utilizes Öhlins’ TTX twin-tube damping system to deliver flawless performance in all conditions. Packed with upgrades over the original DH38, it’s the plushest, most capable, and most easily customizable downhill fork on the market. Like every Öhlins product featuring TTX technology, it includes a race-proven settings bank that allows riders to fine-tune damping for any bike, rider, or style. The DH38 m.1 is also designed for easy maintenance, with a 50-hour lower leg service that can be performed in minutes—see the video below for details.


Features

TTX technology

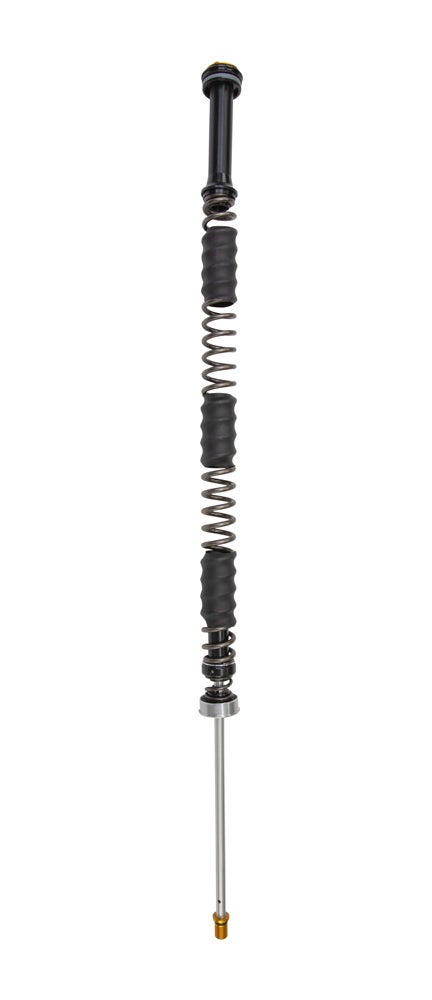

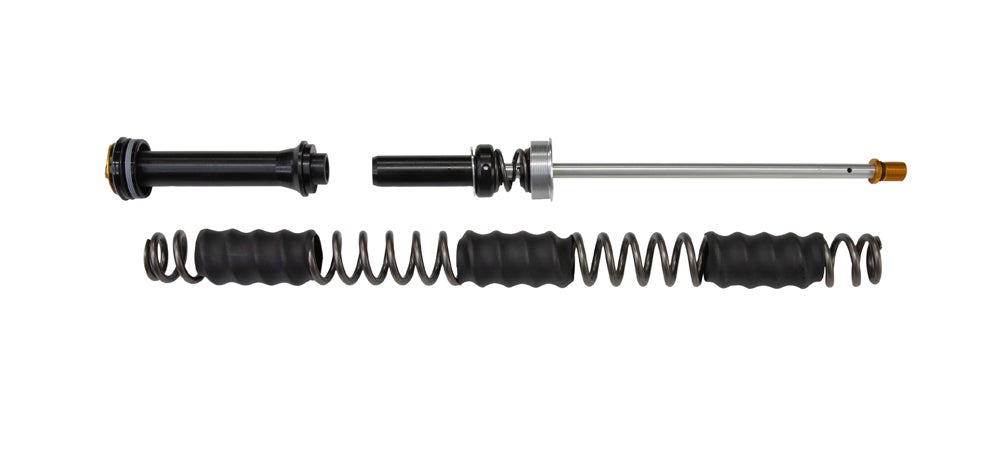

Independent cartridge coil spring and damper systems
Designed for use with a 200 mm disc
Uses the 110x20 mm Boost DH hub standard
38-mm upper tube diameter for added strength
Various offsets available: 46/50/54/58 mm
Compatible maximum tire sizes: 29 x 2.8 and 27.5 x 3.0
Dual-clamp floating axle for minimum friction
Stroke: 200 mm
e-MTB approved
Weight: 2715 g (without crowns and steer tube)
Wheel size:
29/27.5 in
Brake dim:
200 mm
Damp tech:
TTX18
Hsc Cli:
3
Lsc Cli:
16
Lsr Cli:
16
Offset:
46/50/54/58 mm
Spring Rate:
9.7 N/mm
Spring t:
Coil
Tire:
29 × 2.8 / 27.5 × 3.0 in
Travel:
200 mm
Axel dim:
110 × 20 mm
Owner's Manual DH38m.1
OwnersManual
DOWNLOAD
