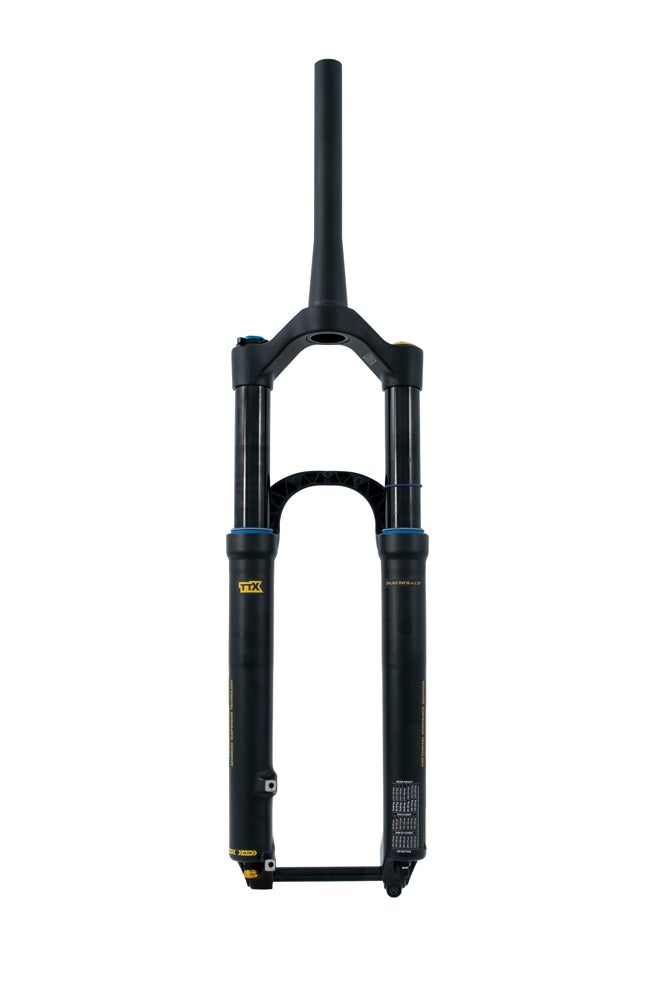

RXF36 m.2 Front Fork Mountain Bike

Part no: FGMTB 3617 2011

Light, fast, and built around our race-proven TTX18 cartridge, the RXF36 m.2 brings downhill-level control and precision to trail and enduro riding. The trail-optimized TTX18 cartridge features an 18 mm piston that delivers ultra-sensitive tracking over small bumps while maintaining the support and stability needed for aggressive riding. With increased damping pressure bandwidth, response and sensitivity surpass those of the original RXF36, offering exceptional traction and consistent performance even on the roughest terrain.



Setup is quick and intuitive. See the video below to learn how to fine-tune the fork for your style and terrain. Once dialed in, you’ll immediately feel its super-plush comfort and momentum-carrying support over roots and rocks, keeping you perfectly connected to the trail. The RXF36 m.2 inspires confidence and control, encouraging you to push your limits with every ride.



The RXF36 m.2 offers 15 clicks of low-speed compression and rebound for complete suspension control. High-speed compression provides three clicks plus a climb mode setting, with tool-free clicker dials for quick on-the-fly adjustments. The retuned twin-piston, three-chamber air spring system lets you fine-tune progression from the initial stroke through to bottom-out. Its cartridge-based design also makes it easy to switch between air and coil spring setups.



Features

TTX technology
Fork travel: 170 mm
Independent spring system
Independent damper system
Retuned air spring system
36-mm upper tube diameter
44 mm offset
Compatible maximum tire size: 29 × 2.8 in
eMTB-approved
Race-proven setting bank
Overall improvements for reducing friction
Axel crown:
590 mm
Wheel size:
29 in
Damp tech:
TTX18
Hsc Cli:
3
Lsc Cli:
15
Lsr Cli:
15
Spring t:
Air
Axel dim:
110 x 15 mm
Owner's Manual RXF36 m.2
OwnersManual
DOWNLOAD
Workshop Manual RXF36 m2 50h Service
Workshop Manual
DOWNLOAD
Light, fast, and built around our race-proven TTX18 cartridge, the RXF36 m.2 brings downhill-level control and precision to trail and enduro riding. The trail-optimized TTX18 cartridge features an 18 mm piston that delivers ultra-sensitive tracking over small bumps while maintaining the support and stability needed for aggressive riding. With increased damping pressure bandwidth, response and sensitivity surpass those of the original RXF36, offering exceptional traction and consistent performance even on the roughest terrain.



Setup is quick and intuitive. See the video below to learn how to fine-tune the fork for your style and terrain. Once dialed in, you’ll immediately feel its super-plush comfort and momentum-carrying support over roots and rocks, keeping you perfectly connected to the trail. The RXF36 m.2 inspires confidence and control, encouraging you to push your limits with every ride.



The RXF36 m.2 offers 15 clicks of low-speed compression and rebound for complete suspension control. High-speed compression provides three clicks plus a climb mode setting, with tool-free clicker dials for quick on-the-fly adjustments. The retuned twin-piston, three-chamber air spring system lets you fine-tune progression from the initial stroke through to bottom-out. Its cartridge-based design also makes it easy to switch between air and coil spring setups.



Features

TTX technology
Fork travel: 170 mm
Independent spring system
Independent damper system
Retuned air spring system
36-mm upper tube diameter
44 mm offset
Compatible maximum tire size: 29 × 2.8 in
eMTB-approved
Race-proven setting bank
Overall improvements for reducing friction
Axel crown:
590 mm
Wheel size:
29 in
Damp tech:
TTX18
Hsc Cli:
3
Lsc Cli:
15
Lsr Cli:
15
Spring t:
Air
Axel dim:
110 x 15 mm
Owner's Manual RXF36 m.2
OwnersManual
DOWNLOAD
Workshop Manual RXF36 m2 50h Service
Workshop Manual
DOWNLOAD

How to set up your TTXAir shock and RXF36 m.2 fork
