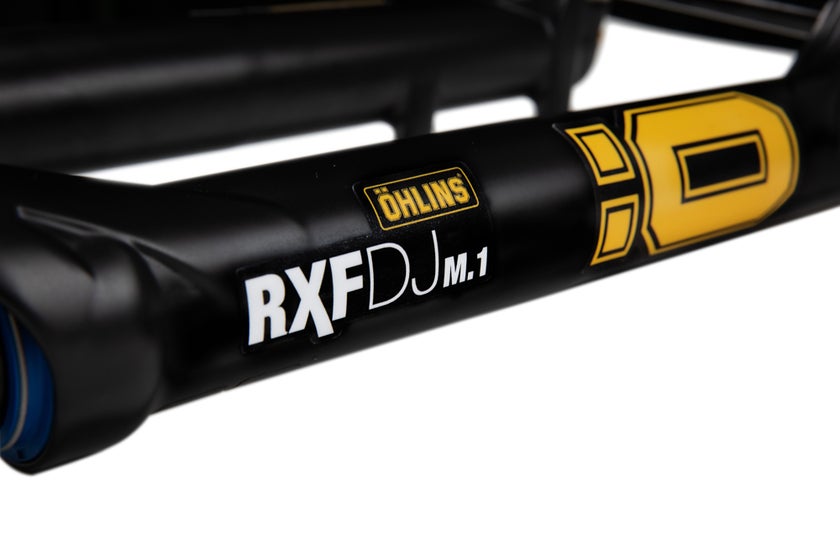

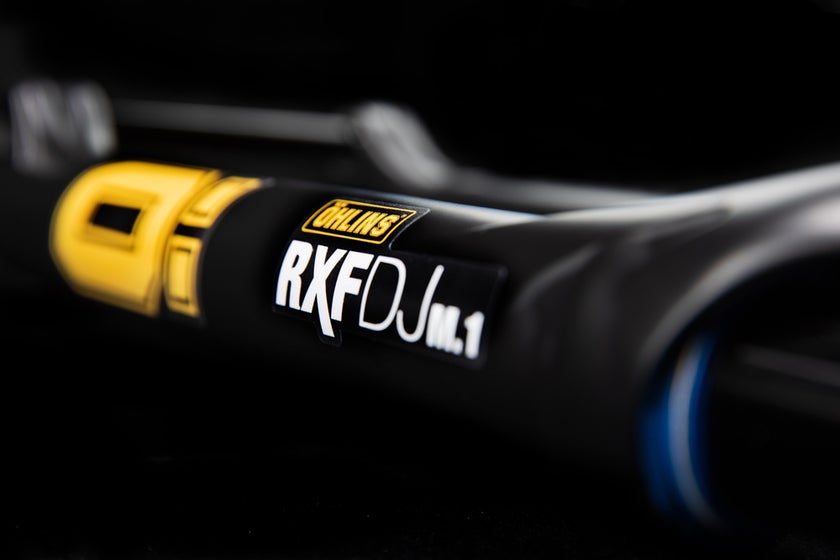

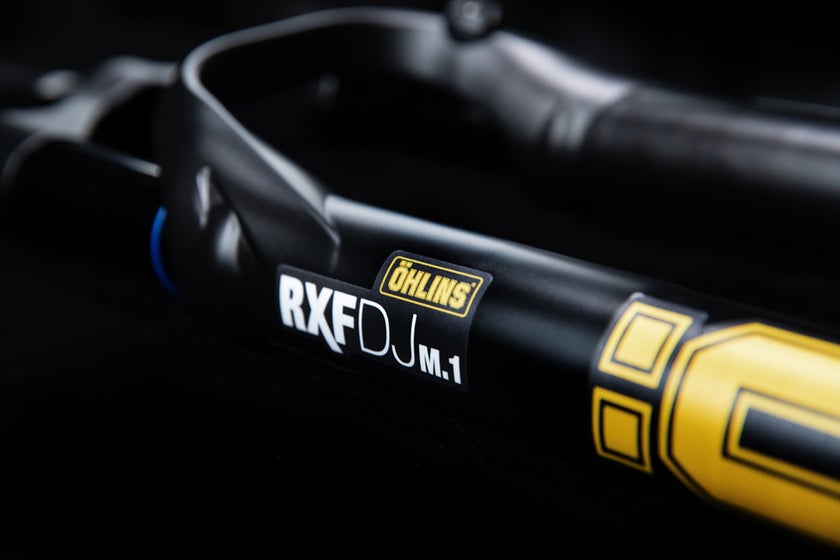

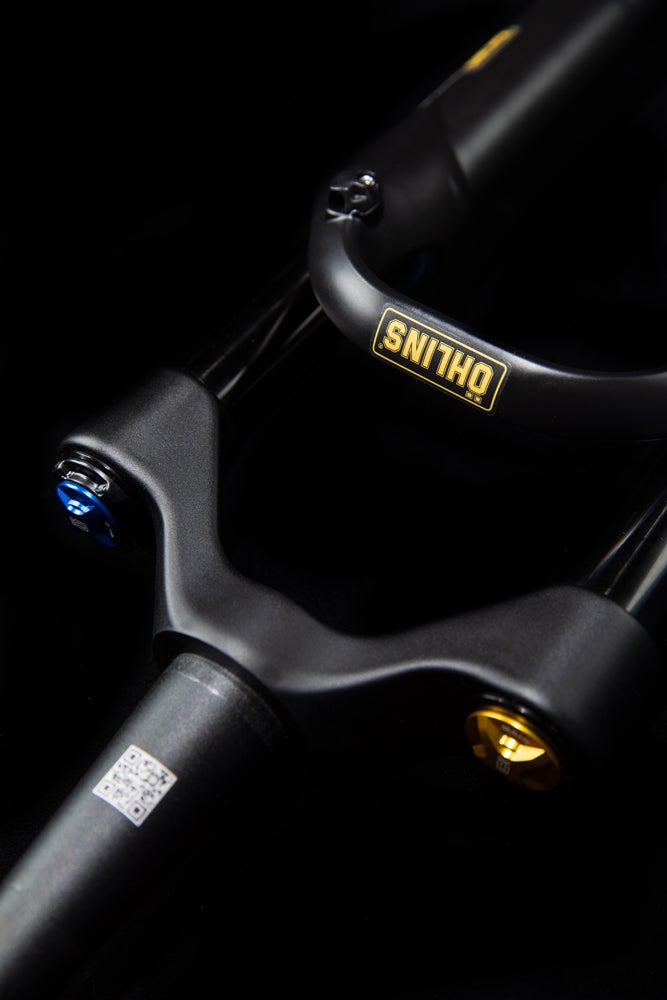

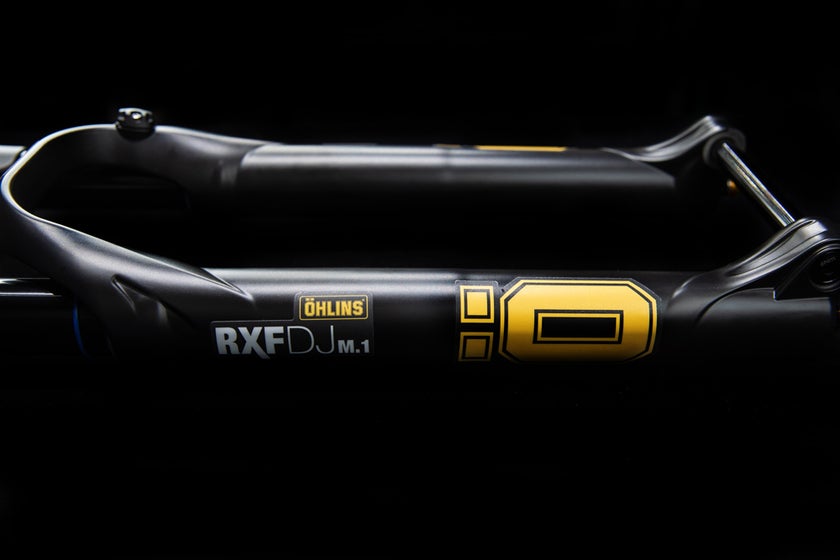

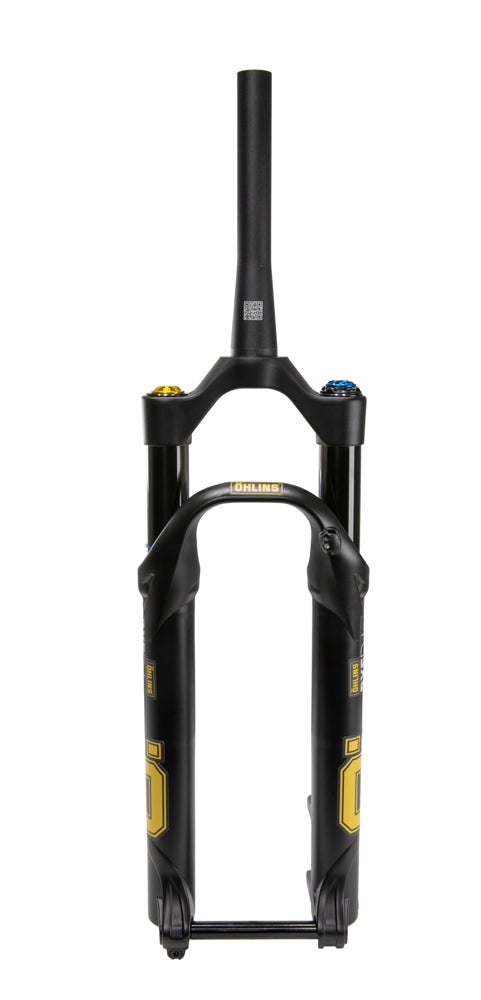

RXFDJ m.1 Front Fork Mountain Bike

Part no: FGMTB 3609 2361

Select model

The RXFDJ m.1 is a high-performance dirt jump fork built around our race proven TTX18 cartridge and 3-chamber air spring. It offers superior strength and stiffness, excelling in the slopestyle, pump track, and dirt jump arenas. This fork has been piloted by Matt Jones and Nico Vink to push what’s possible on a bike.

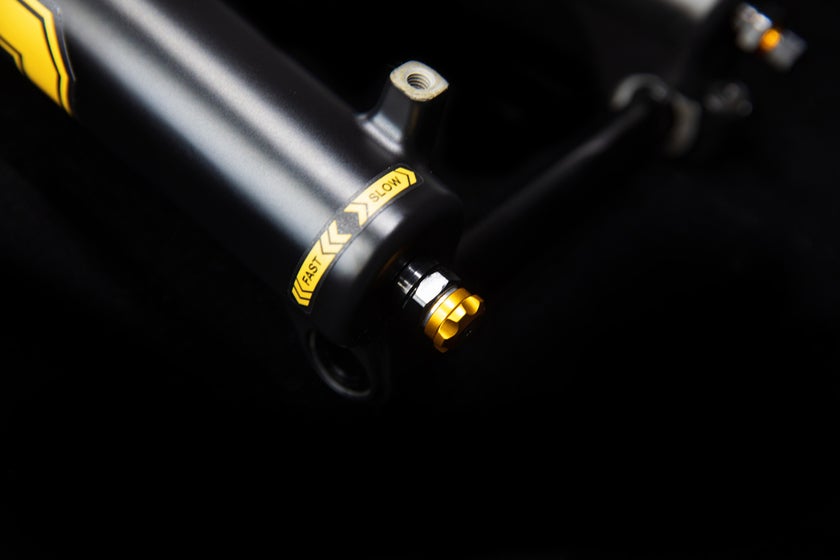

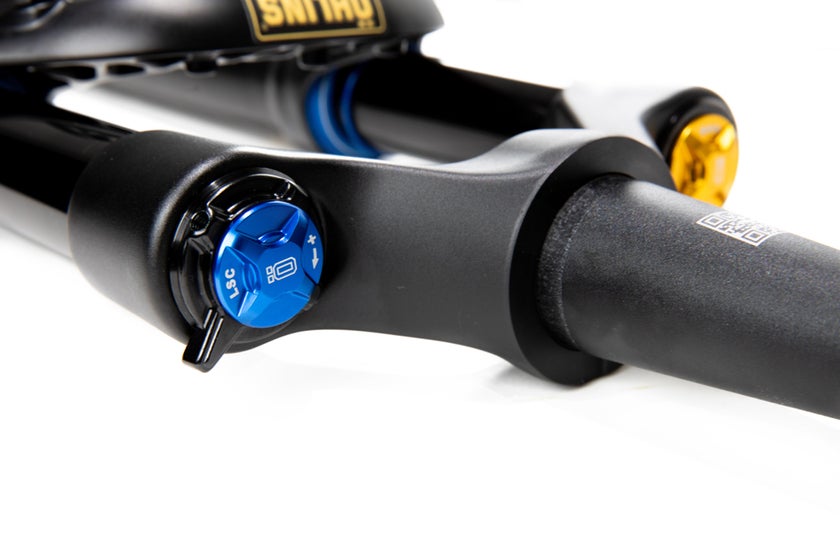

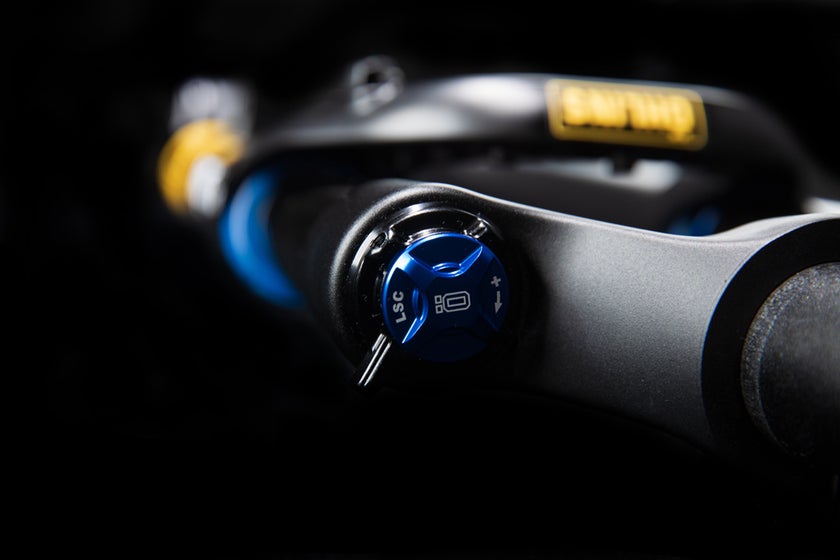

The TTX18 damper is derived from DH World Cup race-proven technology, offering massive support and control in the most demanding situations. The TTX18 cartridge features an 18 mm piston, a twin-tube oil pathway, and external rebound and compression (both high and low) adjustments to achieve optimal fork performance.

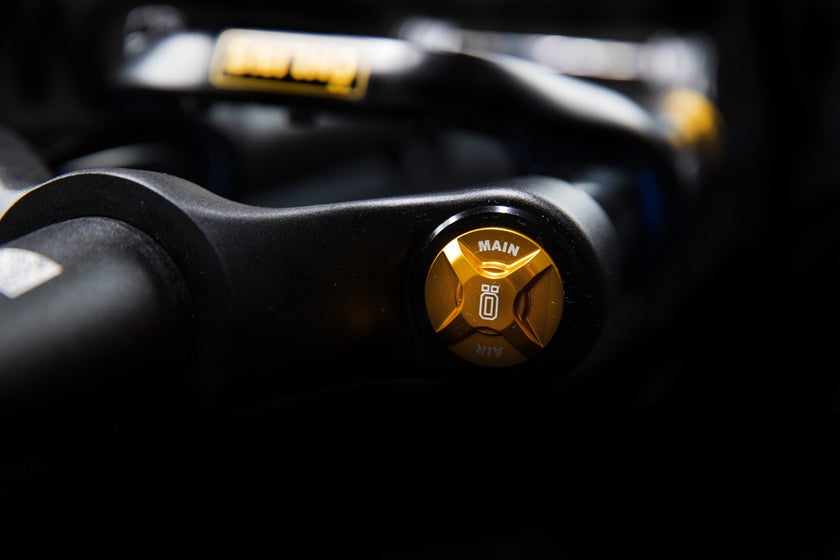

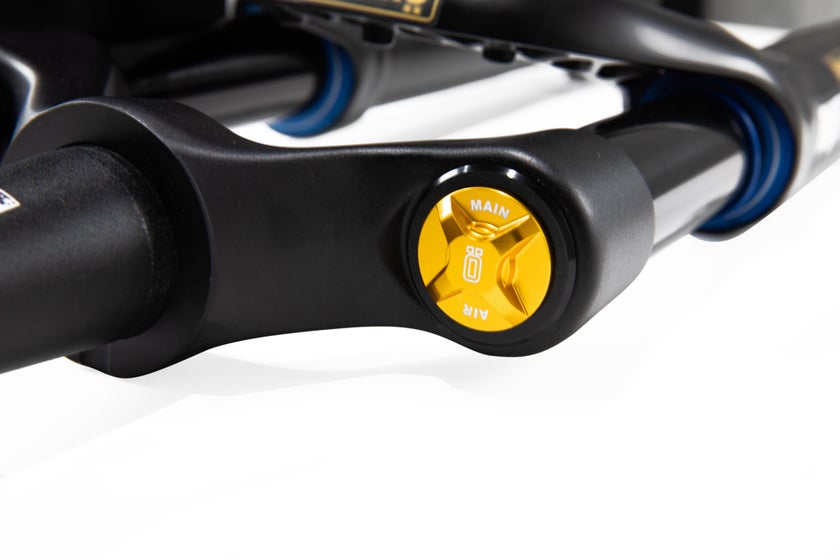

The three-chamber air spring delivers best in class adjustability so you can find the perfect setup for the type of riding you do. Bottom-out progression can be externally adjusted by adding air pressure in the ramp-up chamber — no tokens needed. With a wide adjustment range in both damper and air spring, it is easy to achieve the perfect setup.


The RXFDJ m.1 delivers exceptional control, strength, and confidence to push your boundaries on dirt jumps, pump tracks, and the biggest slopestyle lines alike.



Features

TTX technology
Independent spring system
Independent damper system
Fork travel: 90 mm
36-mm stanchion diameter
38 mm offset

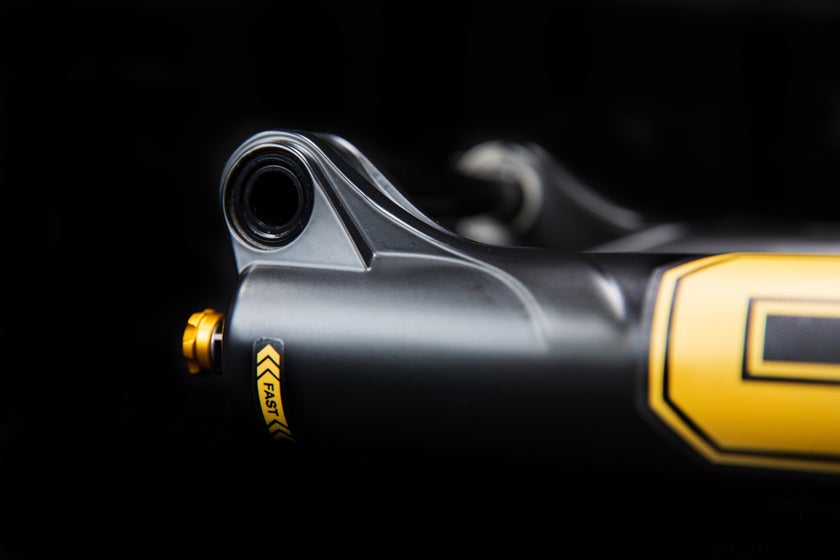

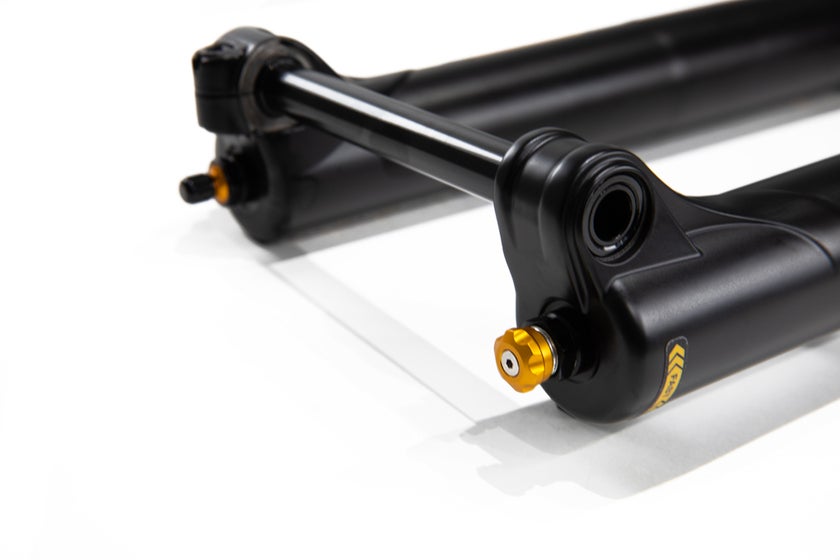

Floating 15 x 110 mm axel for minimal friction
Wheel size: 26 in
Weight: 2050 g (with bolts + axle)
Axel crown:
489mm
Wheel size:
26in
Brake dim:
180-205mm
Damp tech:
TTX18
Hsc Cli:
3
Lsc Cli:
16
Lsr Cli:
16
Offset:
38mm
Spring t:
Air
Tire:
27.5×2.8in
Travel:
90mm
Axel dim:
15×110mm
Owner's Manual Öhlins MTB RXF36 m.2 And RXFDJ m.1
OwnersManual
Workshop Manual Öhlins MTB RXF36 m.2 / m.3 RXFDJ m.1 50h Air Spring Service
Workshop Manual
Workshop Manual Öhlins MTB RXF36 m.2 / m.3 RXFDJ m.1 100h Chassis and Air Spring Service
