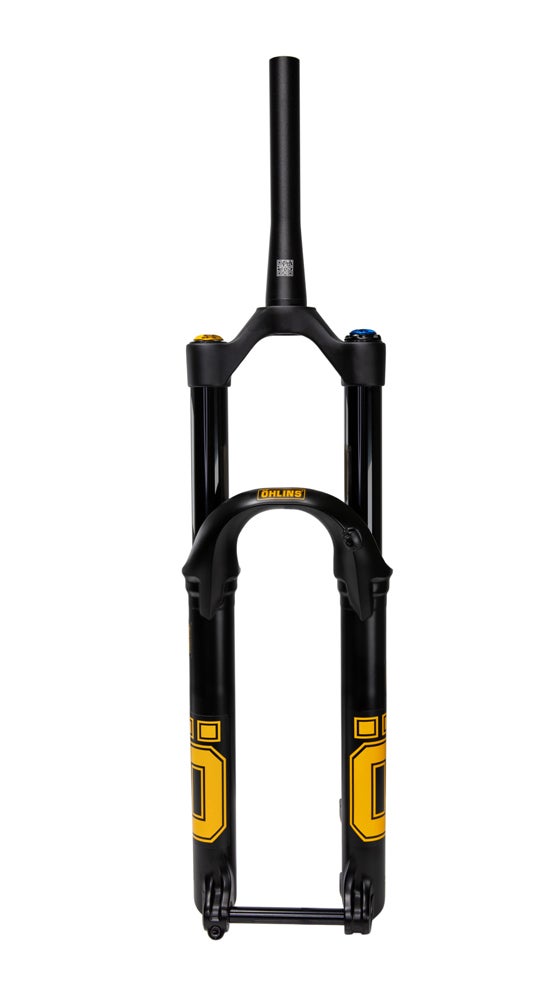

RXF36 m.3 Front Fork Mountain Bike
Part no: FGMTB 3617 2461
Our race-winning TTX18 damping technology from the DH38 Race Fork has been adapted to deliver its renowned top-tier traction and control on the most demanding trails. With the new chassis, the fork delivers ultra-sensitive tracking over small bumps while maintaining Öhlins' signature precise steering and predictable handling—no matter how long or hard it's pushed.
The RXF36 m.3 features increased internal bushing overlap and an optimized configuration for 140–160 mm of travel on 29" wheels (up to 170 mm for 27.5"), along with crown offsets of 38, 44, and 51 mm. With its updated settings and reduced chassis friction, the fork offers improved sensitivity for greater traction and comfort to conquer any trail. A new surface treatment on the stanchions lower the friction, boosts small bump sensitivity and overall ride smoothness. In addition, it reduces wear and enhances long-term performance. The updated lowers feature a gloss black finish and bold new graphics, ensuring riders can feel and see the next level of performance every time they hit the trail or park.

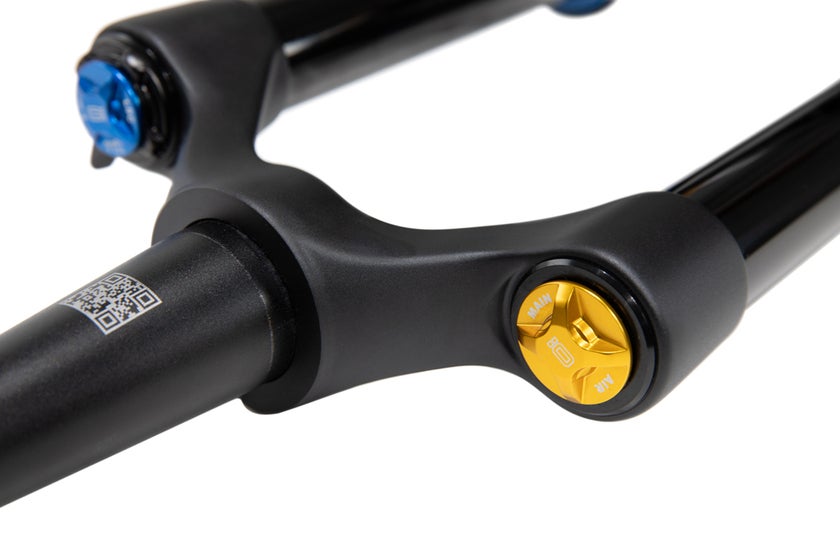

The RXF36 m.3’s adjustment range is specifically designed for tough trails and provides 16 clicks of low-speed compression, 3 clicks of high-speed compression, and 16 clicks of rebound adjustment. It features our floating axle design for minimal friction and weighs 2050 g (with bolts and axle). The retuned, twin piston, three chamber air-spring system allows you to completely dial-in the level of progression, from the initial movement, right through to the bottom out. The air spring is cartridge-based, allowing for easy swaps between coil and air if desired.
Features
Our race-winning TTX18 damping technology from the DH38 Race Fork has been adapted to deliver its renowned top-tier traction and control on the most demanding trails. With the new chassis, the fork delivers ultra-sensitive tracking over small bumps while maintaining Öhlins' signature precise steering and predictable handling—no matter how long or hard it's pushed.
The RXF36 m.3 features increased internal bushing overlap and an optimized configuration for 140–160 mm of travel on 29" wheels (up to 170 mm for 27.5"), along with crown offsets of 38, 44, and 51 mm. With its updated settings and reduced chassis friction, the fork offers improved sensitivity for greater traction and comfort to conquer any trail. A new surface treatment on the stanchions lower the friction, boosts small bump sensitivity and overall ride smoothness. In addition, it reduces wear and enhances long-term performance. The updated lowers feature a gloss black finish and bold new graphics, ensuring riders can feel and see the next level of performance every time they hit the trail or park.
The RXF36 m.3’s adjustment range is specifically designed for tough trails and provides 16 clicks of low-speed compression, 3 clicks of high-speed compression, and 16 clicks of rebound adjustment. It features our floating axle design for minimal friction and weighs 2050 g (with bolts and axle). The retuned, twin piston, three chamber air-spring system allows you to completely dial-in the level of progression, from the initial movement, right through to the bottom out. The air spring is cartridge-based, allowing for easy swaps between coil and air if desired.
